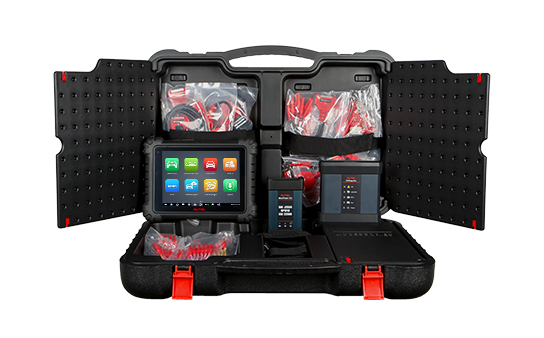

MaxiSYS MS909EV

Advanced EV Diagnostics with MaxiFlash VCI/J2534

The  MaxiSys MS909EV  is  a  new generation of advanced diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV  provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics.


  • image 1
  • image 1

• Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles


• Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data


• Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions


• State of Charge and State of Health analysis for true battery condition


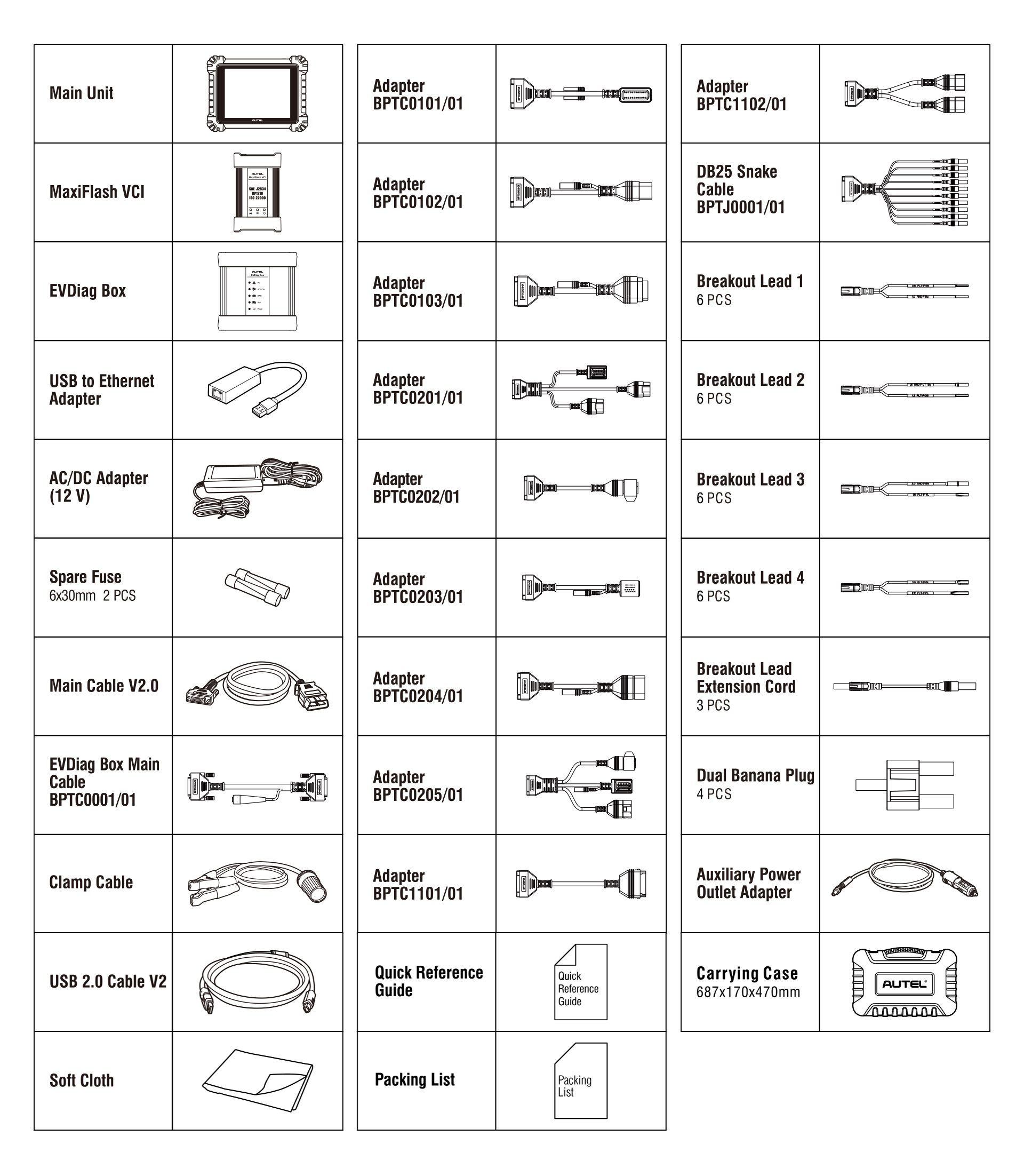

• Battery pack analysis can be performed via OBD or  directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.


• Automatic system and software updates with real-time push message notifications via internet


• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error


• One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized


• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes


Operating SystemAndroid 10.0
Processor

Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

Memory4GB RAM & 128GB On-board Memory
Display9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity
  • Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)

  • BT V5.0 + BR/EDR

  • GPS

  • USB 2.0 (2 USB TYPE-A ports and a Mini USB port)

  • HDMI 2.0

  • SD Card (Support up to 256GB)

Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight

  • Front: 16 Megapixel

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output
  • Microphone

  • Dual Speakers

  • 3-Band 3.5 mm stereo/standard headset jac

Power and Battery
  • 15000mAH 3.8V lithium-polymer battery

  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage12V/3A Adapter
Operating Temperature0 to 50°C (32 to 122°F)
Storage Temperature-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight1.66kg (3.66 lb.)
ProtocolsCANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

MS909EV

Ultra EV

MS909

MS919

Ultra

Hardware

Connection

Bluetooth MaxiFlash VCI

Bluetooth MaxiFlash VCMI

Bluetooth MaxiFlash VCI

Bluetooth MaxiFlash VCMI

Bluetooth MaxiFlash  VCMI

Screen

9.7inch touchscreen

12.9inch touchscreen

9.7inch touchscreen

9.7inch touchscreen

12.9inch touchscreen

Battery

15,000mAh

18,000mAh

15,000mAh

15,000mAh

18,000mAh

Processor

2.2GHz+1.8GHz
        octa-core

2.2GHz+1.8GHz
        octa-core

2.2GHz+1.8GHz
        octa-core

2.2GHz+1.8GHz
        octa-core

2.2GHz+1.8GHz
        octa-core

Memory

128GB SSD/ 4GB RAM

256GB SSD/ 4GB RAM

128GB SSD/ 4GB RAM

128GB SSD/ 4GB RAM

256GB SSD/ 4GB RAM

Camera

16MP rear/16MP front

16MP rear/5MP front

16MP rear/16MP front

16MP rear/16MP front

16MP rear/5MP front

Docking Station


Included



Included

EVDiag Box

Included

Included




Software

Operating System

Android 10.0

Android 7.0

Android 10.0

Android 10.0

Android 7.0

Automatic Detection

Auto-VIN/Auto-Scan
        Scan VIN/Plate Scan

Auto-VIN/Auto-Scan
        Scan VIN/Plate Scan

Auto-VIN/Auto-Scan
        Scan VIN/Plate Scan

Auto-VIN/Auto-Scan
        Scan VIN/Plate Scan

Auto-VIN/Auto-Scan
        Scan VIN/Plate Scan

Secure Gateway Access

Authorized FCA Access
 With AutoAuth   account

Authorized FCA Access

With AutoAuth account

Authorized FCA Access
 With AutoAuth account

Authorized FCA Access
With AutoAuth   account

Authorized FCA Access

 With AutoAuth     account

License Plate Reader

Available on select vehicles

Available on select vehicles

Available on select vehicles

Available on select vehicles

Available on select vehicles

Vehicle Coverage

U.S., European and Asian electric, gas and diesel, and hybrid vehicles

U.S., European and Asian electric, gas and diesel, and hybrid vehicles

U.S., European and Asian electric, gas and diesel, and hybrid vehicles

U.S., European and Asian electric, gas and diesel, and hybrid vehicles

U.S.,European and Asian electric, gas and diesel, and hybrid vehicles

OBDII Test Modes

All 10 test modes

All 10 test modes

All  10 test modes

All 10 test modes

All 10 test modes

Service Resets

36 service features

36 service features

36 service features

36 service features

36 service features

Diesel PM

Reset  diesel emissions

Light&medium duty vehicles

Reset diesel emissions

Light&medium duty vehicles

Reset diesel emissions

Light&medium duty vehicles

Reset diesel emissions

Light&medium duty vehicles

Reset diesel emissions

Light&medium     duty vehicles

System Diagnostics

Access all modules in all systems

Access all modules in all systems

Access  all modules in all systems

Access all modules in all systems

Access all modules in all systems

High-voltage System Diagnostics

Diagrams of high-voltage system block

Diagrams of high-voltage system block




Battery Pack Diagnostics

SOC and SOH analysis

SOC and SOH analysis




Component Activations

Bi-directional control

Bi-directional control

Bi-directional control

Bi-directional control

Bi-directional control

Enhanced Functions

Coding&adaptations

Coding&adaptations

Coding&adaptations

Coding&adaptations

Coding     & adaptations

ADAS Calibration

ADAS Upgrade & Frame Kit
        Purchase required

ADAS Upgrade & Frame Kit
        Purchase required

ADAS Upgrade & Frame Kit
        Purchase required

ADAS Upgrade & Frame Kit
        Purchase required

ADAS  Upgrade & Frame Kit
        Purchase required

Cloud Services

Remote programming & Report storage

Remote programming & Report storage

Remote programming & Report storage

Remote programming & Report storage

Remote programming & Report storage

Topology Module Mapping

Color coded all system status screen on supported vehicles

Color coded all system status screen on supported vehicles

Color coded all system status screen on supported vehicles

Color coded all system status screen on supported vehicles

Color coded all system status screen on supported vehicles

Oscilloscope


VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester


VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester

VCMI 5-in-one devic,  VCI multimeter, waveform generator, CAN Bus tester

Split ScreenDisplay





View multiple functions at once


  • Description
  • • Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles


    • Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data


    • Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions


    • State of Charge and State of Health analysis for true battery condition


    • Battery pack analysis can be performed via OBD or  directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.


    • Automatic system and software updates with real-time push message notifications via internet


    • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error


    • One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized


    • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes


  • Specifications
  • Operating SystemAndroid 10.0
    Processor

    Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

    Memory4GB RAM & 128GB On-board Memory
    Display9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
    Connectivity
    • Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)

    • BT V5.0 + BR/EDR

    • GPS

    • USB 2.0 (2 USB TYPE-A ports and a Mini USB port)

    • HDMI 2.0

    • SD Card (Support up to 256GB)

    Camera
    • Rear: 16 Megapixel, Autofocus with Flashlight

    • Front: 16 Megapixel

    Sensors

    Gravity Accelerometer, Ambient Light Sensor (ALS)

    Audio Input/Output
    • Microphone

    • Dual Speakers

    • 3-Band 3.5 mm stereo/standard headset jac

    Power and Battery
    • 15000mAH 3.8V lithium-polymer battery

    • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

    Input Voltage12V/3A Adapter
    Operating Temperature0 to 50°C (32 to 122°F)
    Storage Temperature-20 to 60°C (-4 to 140°F)
    Dimensions(W x H x D)304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
    Weight1.66kg (3.66 lb.)
    ProtocolsCANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
