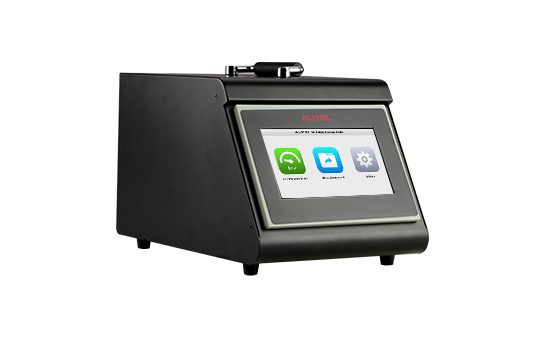

MAXIEV ALT100L

EV BATTERY ENCLOSURE INTEGRITY TESTING

The MaxiEV ALT100L is an EV battery leakage and airtightness tester. The unit tests high voltage battery enclosures and high voltage thermodynamics systems for leaks. Offers real-time, dual pressure display of current pressure and leakage fluctuation with high-sensitive pressure sensing that significantly improves test accuracy and stability. The ALT100L offers customizable presets: Pack ID and volume, target pressure, testing phase time, alarm settings, and save and print reports. Offers onscreen test monitoring, and automatically saves test parameters for easy retest adjustments.


  • image 1
  • image 1

•Tests high voltage battery enclosures and high voltage thermodynamics systems such as coolant and A/C for leaks

•High-sensitive pressure sensing significantly improves test accuracy and stability

•Dual Pressure Display: Real-time display of current pressure and leakage fluctuations

•On-screen monitoring of tests progress

•Customizable Presets: Pack ID and volume, target pressure, testing phase time, and alarm settings

•Automatically saves test parameters for easy retest adjustments

•Audible and visual abnormal or failed test results to ensure safety

•Saves test result screenshots to USB for report generation

•Software updates via download


TEST POWER20W Max
TEST PRESSURE RANGE0-30KPa
SENSOR RESOLUTION1 Pa
TEST ACCURACY±5pa
COMMUNICATION PORTRS-232 / USB
DATA STORAGEInternal memory/ download via USB disk
POWER SUPPLYAC 220V
AIR SUPPLY0.1‒1.0 MPa dry compressed air
AIR INLET PORT/TEST PORTφ6mm air pipe/φ6mm air pipe
WORK TEMPERATURE/HUMIDITY10%‒90% @25°C, without condensation
DIMENSIONS (WEIGHT)280*300*200 mm 3.5kg
  • Description
  • •Tests high voltage battery enclosures and high voltage thermodynamics systems such as coolant and A/C for leaks

    •High-sensitive pressure sensing significantly improves test accuracy and stability

    •Dual Pressure Display: Real-time display of current pressure and leakage fluctuations

    •On-screen monitoring of tests progress

    •Customizable Presets: Pack ID and volume, target pressure, testing phase time, and alarm settings

    •Automatically saves test parameters for easy retest adjustments

    •Audible and visual abnormal or failed test results to ensure safety

    •Saves test result screenshots to USB for report generation

    •Software updates via download


  • Specifications
  • TEST POWER20W Max
    TEST PRESSURE RANGE0-30KPa
    SENSOR RESOLUTION1 Pa
    TEST ACCURACY±5pa
    COMMUNICATION PORTRS-232 / USB
    DATA STORAGEInternal memory/ download via USB disk
    POWER SUPPLYAC 220V
    AIR SUPPLY0.1‒1.0 MPa dry compressed air
    AIR INLET PORT/TEST PORTφ6mm air pipe/φ6mm air pipe
    WORK TEMPERATURE/HUMIDITY10%‒90% @25°C, without condensation
    DIMENSIONS (WEIGHT)280*300*200 mm 3.5kg
