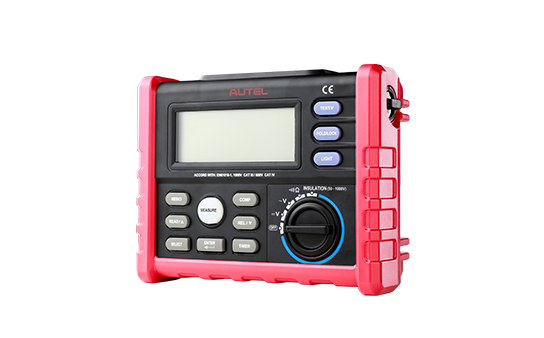

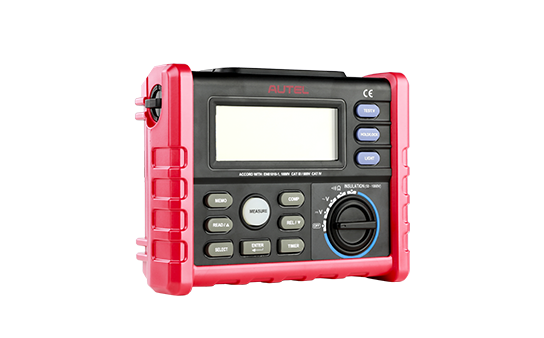

MAXIEV ITS100

HIGH VOLTAGE ELECTRICAL COMPONENT INSULATION AND R

The MaxiEV ITS100 is a EV Insulation resistance tester. With the ITS100, technicians can apply a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the tested component or system and measure the resulting current flow to identify issues like damage, deterioration, or contamination of the insulation. Provides easily interpretable visualized data for informed decision-making during vehicle maintenance.


  • image 1
  • image 1
  • image 1

•Tests high voltage wiring and components

•Test resistance measurement before loading into the vehicle

•Helps identify issues like damage, deterioration, or contamination of the insulation

•Applies a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the component or system being tested and measure the resulting current flow

•Provides easily interpretable visualized data for informed decision-making during vehicle maintenance

•Three measurement modes: relative, timely, and continuity

•Complies with IEC/EN 61010-1 1000V CAT Ⅲ, 600 V CAT Ⅳ measurements

•Use to discharge capacitors and testing/diagnosing isolation faults or shorts

•Automatic power-off function to conserve battery power


INSULATION RESISTANCE RANGE0.01MΩ ~ 10.00GΩ
INSULATION TEST OUTPUT VOLTAGE50V, 100V, 250V, 500V, 1000V
RESISTANCE TEST0.01Ω~200Ω
DC VOLTAGE TEST0.1~ 1000V
AC VOLTAGE TEST0.1V~750V
DIMENSIONS (WEIGHT)180*140*65mm (0.9kg)
  • Description
  • •Tests high voltage wiring and components

    •Test resistance measurement before loading into the vehicle

    •Helps identify issues like damage, deterioration, or contamination of the insulation

    •Applies a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the component or system being tested and measure the resulting current flow

    •Provides easily interpretable visualized data for informed decision-making during vehicle maintenance

    •Three measurement modes: relative, timely, and continuity

    •Complies with IEC/EN 61010-1 1000V CAT Ⅲ, 600 V CAT Ⅳ measurements

    •Use to discharge capacitors and testing/diagnosing isolation faults or shorts

    •Automatic power-off function to conserve battery power


  • Specifications
  • INSULATION RESISTANCE RANGE0.01MΩ ~ 10.00GΩ
    INSULATION TEST OUTPUT VOLTAGE50V, 100V, 250V, 500V, 1000V
    RESISTANCE TEST0.01Ω~200Ω
    DC VOLTAGE TEST0.1~ 1000V
    AC VOLTAGE TEST0.1V~750V
    DIMENSIONS (WEIGHT)180*140*65mm (0.9kg)
