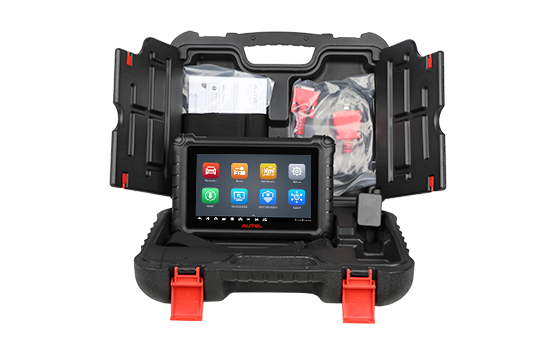

MaxiCheck MX900

All Systems Diagnostics and Service Tablet

TheMaxiCheck MX900 is an all-system diagnostics tablet, compatible with U.S., Asian, and European vehicles, 1996 and newer. The eight-inch touchscreen Android-based tablet features a quad-core processor for maximum speed and efficiency.

  • image 0
  • image 0

·8-inch high-resolution, responsive touchscreen display


·Android 11 operating system offers advanced streamlined functionality


·Extensive vehicle coverage for U.S., Asian, and European vehicle makes


·Exceptional OE-Level system coverage for all electronic systems


·Complete code, live data, ECU information, active test, and special function capabilities



·Supports the latest communication protocols, including DoIP and CAN FD



·Smart AutoVIN technology for quick and accurate vehicle identification


·Expansive menu of service and maintenance tasks


·Detailed Pre- and Post Scan Reporting


·Automatic system and software updates with real-time Wi-Fi push notifications


·Remote Access Technical Support Troubleshooting


·One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized


·Convenient data management system for managing internal applications and reviewing data


Operating   SystemAndroid 11
ProcessorQuad core Processor(1.8GHz)
Memory4GB RAM & 64GB ROM
Display8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera8 MP
ConnectivityUSB Type-C
USB 2.0
Wi-Fi
Mini SD card (supports up to 64GB)
Audio Input/OutputInput: N/A
Output: buzzer
Power and Battery3.7 V/7700mAh lithium-polymer battery
Charges via 5 VDC power supply
Battery Charging Input5V/3 A
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp -10 to 60°C (14 to 140°F)
Protocols
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD


  • Autel MaxiCheck MX900



MaxiCheck MX900MaxiDAS DS900MaxiCheck MX808MaxiCheck MX808TS
Read Codes
Erase Codes
Live Data
ECU Information
Active Test
Service Functions√ √ √
Complete OBD Diagnositcs
Pre & Post Scan----
Scan VIN----
ECU Coding------
Guided Function------
Tire Pressure Monitoring   SystemBasicBasicBasicComplete
Immobilizer FunctionBasicBasicBasicBasic
Advanced TPMS Diagnostics for   Complete TPMS Health Check------
Activate All Known TPMS   Sensors------
Program AUTEL MX-Sensors------
Comprehensive OBD relearn   coverage------
On-screen Relearn Procedure------
DoIP----
CANFD√(optional adapter)√(optional adapter)
Battery Analysis------
Videoscope
ProcessorQuad-core 1.8GHzQuad-core 1.8GHzQuad-core 1.6GHzQuad-core 1.6GHz
Operating SystemAndroid 11Android 11Android 4.4.4Android 4.4.4
Memory4G + 64G4G + 64G1G + 64G1G + 64G
Display8" LCD8" LCD7" LCD7" LCD
Battery7700mAh7700mAh5000mAh5000mAh
Internet UpdatableWi-FiWi-FiWi-FiWi-Fi
Multilingual Support
Historical Test Records
Save and Playback Data
Wi-Fi Print ----
Vehicle communication methodWiredWiredWiredWireless (bluetooth)


  • Description
  • ·8-inch high-resolution, responsive touchscreen display


    ·Android 11 operating system offers advanced streamlined functionality


    ·Extensive vehicle coverage for U.S., Asian, and European vehicle makes


    ·Exceptional OE-Level system coverage for all electronic systems


    ·Complete code, live data, ECU information, active test, and special function capabilities



    ·Supports the latest communication protocols, including DoIP and CAN FD



    ·Smart AutoVIN technology for quick and accurate vehicle identification


    ·Expansive menu of service and maintenance tasks


    ·Detailed Pre- and Post Scan Reporting


    ·Automatic system and software updates with real-time Wi-Fi push notifications


    ·Remote Access Technical Support Troubleshooting


    ·One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized


    ·Convenient data management system for managing internal applications and reviewing data


  • Specifications
  • Operating   SystemAndroid 11
    ProcessorQuad core Processor(1.8GHz)
    Memory4GB RAM & 64GB ROM
    Display8-inch LCD capacitive touchscreen with 1280x800 resolution
    Rear Camera8 MP
    ConnectivityUSB Type-C
    USB 2.0
    Wi-Fi
    Mini SD card (supports up to 64GB)
    Audio Input/OutputInput: N/A
    Output: buzzer
    Power and Battery3.7 V/7700mAh lithium-polymer battery
    Charges via 5 VDC power supply
    Battery Charging Input5V/3 A
    Operating Temp0 to 50°C (32 to 122°F)
    Storage Temp -10 to 60°C (14 to 140°F)
    Protocols
    ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD


  • Video
  • Comparison

  • MaxiCheck MX900MaxiDAS DS900MaxiCheck MX808MaxiCheck MX808TS
    Read Codes
    Erase Codes
    Live Data
    ECU Information
    Active Test
    Service Functions√ √ √
    Complete OBD Diagnositcs
    Pre & Post Scan----
    Scan VIN----
    ECU Coding------
    Guided Function------
    Tire Pressure Monitoring   SystemBasicBasicBasicComplete
    Immobilizer FunctionBasicBasicBasicBasic
    Advanced TPMS Diagnostics for   Complete TPMS Health Check------
    Activate All Known TPMS   Sensors------
    Program AUTEL MX-Sensors------
    Comprehensive OBD relearn   coverage------
    On-screen Relearn Procedure------
    DoIP----
    CANFD√(optional adapter)√(optional adapter)
    Battery Analysis------
    Videoscope
    ProcessorQuad-core 1.8GHzQuad-core 1.8GHzQuad-core 1.6GHzQuad-core 1.6GHz
    Operating SystemAndroid 11Android 11Android 4.4.4Android 4.4.4
    Memory4G + 64G4G + 64G1G + 64G1G + 64G
    Display8" LCD8" LCD7" LCD7" LCD
    Battery7700mAh7700mAh5000mAh5000mAh
    Internet UpdatableWi-FiWi-FiWi-FiWi-Fi
    Multilingual Support
    Historical Test Records
    Save and Playback Data
    Wi-Fi Print ----
    Vehicle communication methodWiredWiredWiredWireless (bluetooth)
