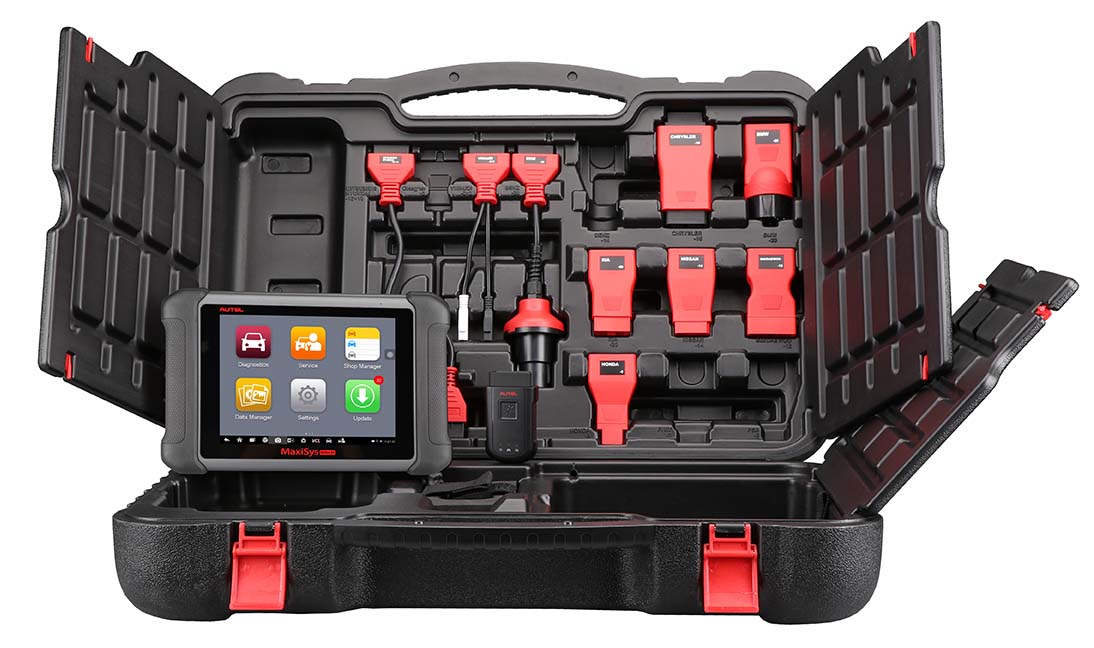

MaxiSYS MS906BT

OBD2 Bi-Directional Bluetooth Diagnostic Scanner

MaxiSys MS906BT is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSYS MS906BT efficiently provides comprehensive vehicle diagnostics and analysis.


  • image 1
  • image 1

Extraordinarily powerful Samsung Exynos Hexa-core processor


8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility


Internal reliable 64GB SSD for better performance


• Built-in 8-megapixel rear camera with autofocus and flashlight


802.11b/g/n Wi-Fi to access your favorite web resources


Unique ergonomic design with rubberized outer protection and a rugged internal housing


Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation


USB, audio and auxiliary ports make it easy to connect accessories


Open source Android Operating System for fast boot-up and multitasking


Easy and intuitive navigation makes finding what you need simple and fast


The most extensive complete system coverage for more than 80 US, Asian and European makes and models


Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding


Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.


Smart AutoVIN technology for identifying vehicle easily


Automatic system and software updates with real-time push message notifications via internet


Instant remote control tech support anytime, anywhere


Cloud-based MaxiFix online community provides proven filed fixes


Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors


One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized


Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work


Convenient data management system for managing internal program applications and reviewing data

Operating SystemAndroid™ 4.4.2, KitKat
ProcessorSamsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory2 GB RAM & 64 GB ROM
Display8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity

Wi-Fi (802.11 b/g/n)

USB: 2.0, Mini USB 2.0

Wireless BT V2.1+EDR Class1, HDMI 1.4a

SD Card (support up to 32 GB)

Camera (rear)

Rear-facing, 8.0 Megapixel

AF with Flashlight

SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output

Microphone, Single Speaker

3-Band 3.5 mm stereo/standard headset jack

Power and Battery

10,000 mAh 3.7 V lithium-polymer battery

Charging via 12 V AC/DC power supply

Input Voltage12 V (9-35 V)
Power Consumption5 W
Operating Temperature-10 to 55°C (14 to 131°F)
Storage Temperature-20 to 70°C (-4 to 158°F)
Dimensions (W x H x D)270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
WeightNW: 1.05 kg (2.3lb.)


MaxiSys

Elite

MaxiSys

CV

MaxiSys

MS908S Pro

MaxiSys

MS908S

MaxiSys

MS906TS

MaxiSys

MS906BT

MaxiSys

MS906





MaxiSys

Elite

MaxiSys

CV

MaxiSys

MS908S Pro

MaxiSys

MS908S

MaxiSys

MS906TS

MaxiSys

MS906BT

MaxiSys

MS906

Function






All Systems DTC Scan
Service Function
Bi-Directional Control
Auto VIN Technology
ECU Coding----
ECU Programming----------

MaxiFix Cloud-Based Info System

Data Manager
Shop Manager
Remote Support
Pre-scan Report & Post-scan ReportNorth America Only--North America OnlyNorth America OnlyNorth America OnlyNorth America Only
Print Feature
Multi-language Support
Coverage






Domestic/Asian/European Coverage(1996-Present)
Hardware






Display Size9.7"9.7"9.7"9.7"8"8"8"
Wireless VCIMaxiFlash EliteMaxiFlash EliteMaxiFlash EliteWireless Diagnostic
Interface
MaxiVCI V100MaxiVCI V100--
Battery Life15400 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V10000 mAh 3.7 V10000 mAh 3.7 V5000 mAh 3.7 V
Memory Storage64GB64GB64GB64GB32GB32GB32GB

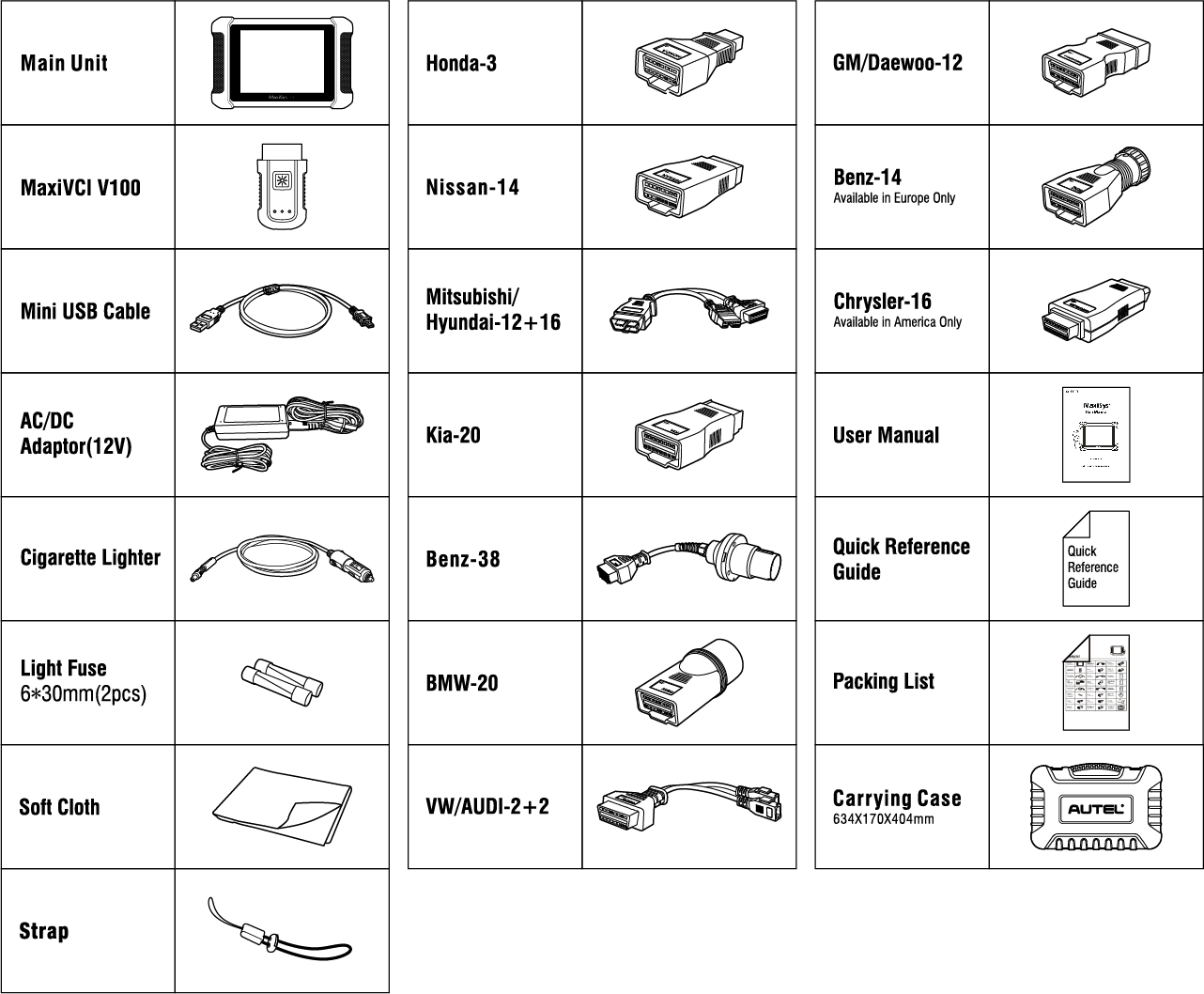

Connector Kit
Options






TPMS------------
Oscilloscope--
Inspection Camera--
ADAS----
  • MaxiSys MS906TS & MS906BT_User Manual_EN

    Download

  • Description
  • Extraordinarily powerful Samsung Exynos Hexa-core processor


    8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility


    Internal reliable 64GB SSD for better performance


    • Built-in 8-megapixel rear camera with autofocus and flashlight


    802.11b/g/n Wi-Fi to access your favorite web resources


    Unique ergonomic design with rubberized outer protection and a rugged internal housing


    Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation


    USB, audio and auxiliary ports make it easy to connect accessories


    Open source Android Operating System for fast boot-up and multitasking


    Easy and intuitive navigation makes finding what you need simple and fast


    The most extensive complete system coverage for more than 80 US, Asian and European makes and models


    Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding


    Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.


    Smart AutoVIN technology for identifying vehicle easily


    Automatic system and software updates with real-time push message notifications via internet


    Instant remote control tech support anytime, anywhere


    Cloud-based MaxiFix online community provides proven filed fixes


    Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors


    One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized


    Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work


    Convenient data management system for managing internal program applications and reviewing data

  • Specifications
  • Operating SystemAndroid™ 4.4.2, KitKat
    ProcessorSamsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
    Memory2 GB RAM & 64 GB ROM
    Display8.0" LED capacitive touch screen with 1024x768P resolution
    Connectivity

    Wi-Fi (802.11 b/g/n)

    USB: 2.0, Mini USB 2.0

    Wireless BT V2.1+EDR Class1, HDMI 1.4a

    SD Card (support up to 32 GB)

    Camera (rear)

    Rear-facing, 8.0 Megapixel

    AF with Flashlight

    SensorsGravity Accelerometer, Ambient Light Sensor (ALS)
    Audio Input/Output

    Microphone, Single Speaker

    3-Band 3.5 mm stereo/standard headset jack

    Power and Battery

    10,000 mAh 3.7 V lithium-polymer battery

    Charging via 12 V AC/DC power supply

    Input Voltage12 V (9-35 V)
    Power Consumption5 W
    Operating Temperature-10 to 55°C (14 to 131°F)
    Storage Temperature-20 to 70°C (-4 to 158°F)
    Dimensions (W x H x D)270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
    WeightNW: 1.05 kg (2.3lb.)
  • Video
  • Comparison
  •

    MaxiSys

    Elite

    MaxiSys

    CV

    MaxiSys

    MS908S Pro

    MaxiSys

    MS908S

    MaxiSys

    MS906TS

    MaxiSys

    MS906BT

    MaxiSys

    MS906





    MaxiSys

    Elite

    MaxiSys

    CV

    MaxiSys

    MS908S Pro

    MaxiSys

    MS908S

    MaxiSys

    MS906TS

    MaxiSys

    MS906BT

    MaxiSys

    MS906

    Function






    All Systems DTC Scan
    Service Function
    Bi-Directional Control
    Auto VIN Technology
    ECU Coding----
    ECU Programming----------

    MaxiFix Cloud-Based Info System

    Data Manager
    Shop Manager
    Remote Support
    Pre-scan Report & Post-scan ReportNorth America Only--North America OnlyNorth America OnlyNorth America OnlyNorth America Only
    Print Feature
    Multi-language Support
    Coverage






    Domestic/Asian/European Coverage(1996-Present)
    Hardware






    Display Size9.7"9.7"9.7"9.7"8"8"8"
    Wireless VCIMaxiFlash EliteMaxiFlash EliteMaxiFlash EliteWireless Diagnostic
    Interface
    MaxiVCI V100MaxiVCI V100--
    Battery Life15400 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V11000 mAh 3.7 V10000 mAh 3.7 V10000 mAh 3.7 V5000 mAh 3.7 V
    Memory Storage64GB64GB64GB64GB32GB32GB32GB
    Connector Kit
    Options






    TPMS------------
    Oscilloscope--
    Inspection Camera--
    ADAS----
