MaxiSYS MS906 Pro-TS

OBDII Bi-Directional Diagnostic Scanner and TPMS Service Tool with Bluetooth VCI

MaxiSYS MS906Pro-TS is an advanced diagnostic tablet compatible with U.S., Asian and European vehicles, 1996 and newer. This 8-inch wireless Android-based touchscreen tablet performs comprehensive TPMS servicing including 1-Sensor programming to its extensive vehicle diagnostics capability including an all systems scan with ADAS identification, the ability to read/erase codes, view freeze frame and live data, bi-directional control including active testing, coding and adaptations. Includes customizable Pre/Post scans, extensive service menu with 25 of the most of common maintenance tasks. FCA Access via AutoAuth account, starting and charging system analysis with MaxiBAS BT506 Bluetooth tester and terminal cables purchase, ADAS Calibrations capable (frame system and software upgrade required).


  • image 0
  • image 0
  • image 0

Hardware:

8-inch, 1920 x 1200 high-resolution touchscreen tablet, Qualcomm 660 Octa-core processor with 128 GB storage and running Android 10.0 operating system.


Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera and 16 MP rear camera.



MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols


Software:

Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles


AutoScan: Scan all available systems, including ADAS identification


Read/Erase Codes, View Freeze Frame and Live Data

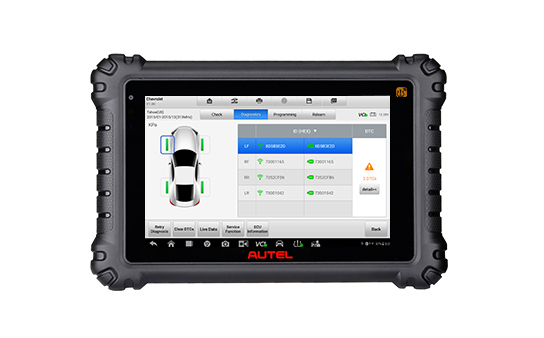

Integrated TPMS antenna module for performing comprehensive TPMS service


Perform Active Tests (bi-directional controls), Coding and Adaptations


AutoVIN/Scan VIN for rapid vehicle identification



Performs ADAS Calibrations with software upgrade and frame system purchase



Comprehensive TPMS service including the ability to activate and relearn all known sensors, and program the Autel 1-Sensor to replace 99% of TPMS sensors on the road today.


New Software Features

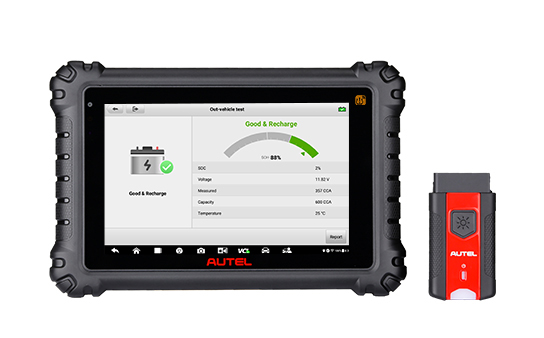

Battery Analyzation Capability


Cloud-based Reports and Data Management



With additional purchase of the MaxiBAS BT506 battery and electrical system tester


With purchase of ADAS calibration frame system and software




MaxiSYS MS906 Pro-TS



Hardware


CPU

Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)



Memory4/128GB

AndroidAndroid 7.0

LCD
8” 1920*1200

Battery11 600 mAh

Camera

Front:16 Megapixel

Rear: 16 Megapixel



Diagnostic Functions






Special Function

26

Guide Function

Support Volkswagen,Audi



Coding and Adaptation

BMW F and E chassis coding

Porsche Coding

Ford offline adaptation



Expanded Function


TPMSIncluded

ADASSupport

Battery and Electrical System TestingSupport

Cloud Services              Support

Remote Expert(Coming Soon)Support

Cloud Report StorageSupport

  • Autel MaxiSYS MS906 Pro — Introduction


  • MaxiSys MS906 Pro-TS User Manual 202209

    Download

  • Description
  • Hardware:

    8-inch, 1920 x 1200 high-resolution touchscreen tablet, Qualcomm 660 Octa-core processor with 128 GB storage and running Android 10.0 operating system.


    Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera and 16 MP rear camera.



    MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols


    Software:

    Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles


    AutoScan: Scan all available systems, including ADAS identification


    Read/Erase Codes, View Freeze Frame and Live Data


    Integrated TPMS antenna module for performing comprehensive TPMS service


    Perform Active Tests (bi-directional controls), Coding and Adaptations


    AutoVIN/Scan VIN for rapid vehicle identification



    Performs ADAS Calibrations with software upgrade and frame system purchase



    Comprehensive TPMS service including the ability to activate and relearn all known sensors, and program the Autel 1-Sensor to replace 99% of TPMS sensors on the road today.


    New Software Features

    Battery Analyzation Capability


    Cloud-based Reports and Data Management



    With additional purchase of the MaxiBAS BT506 battery and electrical system tester


    With purchase of ADAS calibration frame system and software


  • Specifications


  • MaxiSYS MS906 Pro-TS



    Hardware


    CPU

    Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)



    Memory4/128GB

    AndroidAndroid 7.0

    LCD
    8” 1920*1200

    Battery11 600 mAh

    Camera

    Front:16 Megapixel

    Rear: 16 Megapixel



    Diagnostic Functions






    Special Function

    26

    Guide Function

    Support Volkswagen,Audi



    Coding and Adaptation

    BMW F and E chassis coding

    Porsche Coding

    Ford offline adaptation



    Expanded Function


    TPMSIncluded

    ADASSupport

    Battery and Electrical System TestingSupport

    Cloud Services              Support

    Remote Expert(Coming Soon)Support

    Cloud Report StorageSupport
