MaxiSYS Ultra EV

• Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles

• Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data

• Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions

• State of Charge and State of Health analysis for true battery condition

• Battery pack analysis can be performed via OBD or analyze the pack directly with included specialty cables and jumpers; the Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.

• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error

• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize

• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

	MS909EV	Ultra EV	MS909	MS919	Ultra
Hardware
Connection	Bluetooth MaxiFlash VCI	Bluetooth MaxiFlash VCMI	Bluetooth MaxiFlash VCI	Bluetooth MaxiFlash VCMI	Bluetooth MaxiFlash VCMI
Screen	9.7inch touchscreen	12.9inch touchscreen	9.7inch touchscreen	9.7inch touchscreen	12.9inch touchscreen
Battery	15,000mAh	18,000mAh	15,000mAh	15,000mAh	18,000mAh
Processor	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core
Memory	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM	128GB SSD/ 4GB RAM	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM
Camera	16MP rear/16MP front	16MP rear/5MP front	16MP rear/16MP front	16MP rear/16MP front	16MP rear/5MP front
Docking Station		Included			Included
EVDiag Box	Included	Included
Software
Operating System	Android 10.0	Android 7.0	Android 10.0	Android 10.0	Android 7.0
Automatic Detection	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan
Secure Gateway Access	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account
License Plate Reader	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles
Vehicle Coverage	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S.,European and Asian electric, gas and diesel, and hybrid vehicles
OBDII Test Modes	All 10 test modes	All 10 test modes	All 10 test modes	All 10 test modes	All 10 test modes
Service Resets	36 service features	36 service features	36 service features	36 service features	36 service features
Diesel PM	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles
System Diagnostics	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems
High-voltage System Diagnostics	Diagrams of high-voltage system block	Diagrams of high-voltage system block
Battery Pack Diagnostics	SOC and SOH analysis	SOC and SOH analysis
Component Activations	Bi-directional control	Bi-directional control	Bi-directional control	Bi-directional control	Bi-directional control
Enhanced Functions	Coding&adaptations	Coding&adaptations	Coding&adaptations	Coding&adaptations	Coding & adaptations
ADAS Calibration	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required
Cloud Services	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage
Topology Module Mapping	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles
Oscilloscope		VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester		VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester
Split ScreenDisplay					View multiple functions at once

	MS909EV	Ultra EV	MS909	MS919	Ultra
Hardware
Connection	Bluetooth MaxiFlash VCI	Bluetooth MaxiFlash VCMI	Bluetooth MaxiFlash VCI	Bluetooth MaxiFlash VCMI	Bluetooth MaxiFlash VCMI
Screen	9.7inch touchscreen	12.9inch touchscreen	9.7inch touchscreen	9.7inch touchscreen	12.9inch touchscreen
Battery	15,000mAh	18,000mAh	15,000mAh	15,000mAh	18,000mAh
Processor	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core	2.2GHz+1.8GHz octa-core
Memory	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM	128GB SSD/ 4GB RAM	128GB SSD/ 4GB RAM	256GB SSD/ 4GB RAM
Camera	16MP rear/16MP front	16MP rear/5MP front	16MP rear/16MP front	16MP rear/16MP front	16MP rear/5MP front
Docking Station		Included			Included
EVDiag Box	Included	Included
Software
Operating System	Android 10.0	Android 7.0	Android 10.0	Android 10.0	Android 7.0
Automatic Detection	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan	Auto-VIN/Auto-Scan Scan VIN/Plate Scan
Secure Gateway Access	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account	Authorized FCA Access With AutoAuth account
License Plate Reader	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles	Available on select vehicles
Vehicle Coverage	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S., European and Asian electric, gas and diesel, and hybrid vehicles	U.S.,European and Asian electric, gas and diesel, and hybrid vehicles
OBDII Test Modes	All 10 test modes	All 10 test modes	All 10 test modes	All 10 test modes	All 10 test modes
Service Resets	36 service features	36 service features	36 service features	36 service features	36 service features
Diesel PM	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles	Reset diesel emissions Light&medium duty vehicles
System Diagnostics	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems	Access all modules in all systems
High-voltage System Diagnostics	Diagrams of high-voltage system block	Diagrams of high-voltage system block
Battery Pack Diagnostics	SOC and SOH analysis	SOC and SOH analysis
Component Activations	Bi-directional control	Bi-directional control	Bi-directional control	Bi-directional control	Bi-directional control
Enhanced Functions	Coding&adaptations	Coding&adaptations	Coding&adaptations	Coding&adaptations	Coding & adaptations
ADAS Calibration	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required	ADAS Upgrade & Frame Kit Purchase required
Cloud Services	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage	Remote programming & Report storage
Topology Module Mapping	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles	Color coded all system status screen on supported vehicles
Oscilloscope		VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester		VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester	VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester
Split ScreenDisplay					View multiple functions at once

Downloads

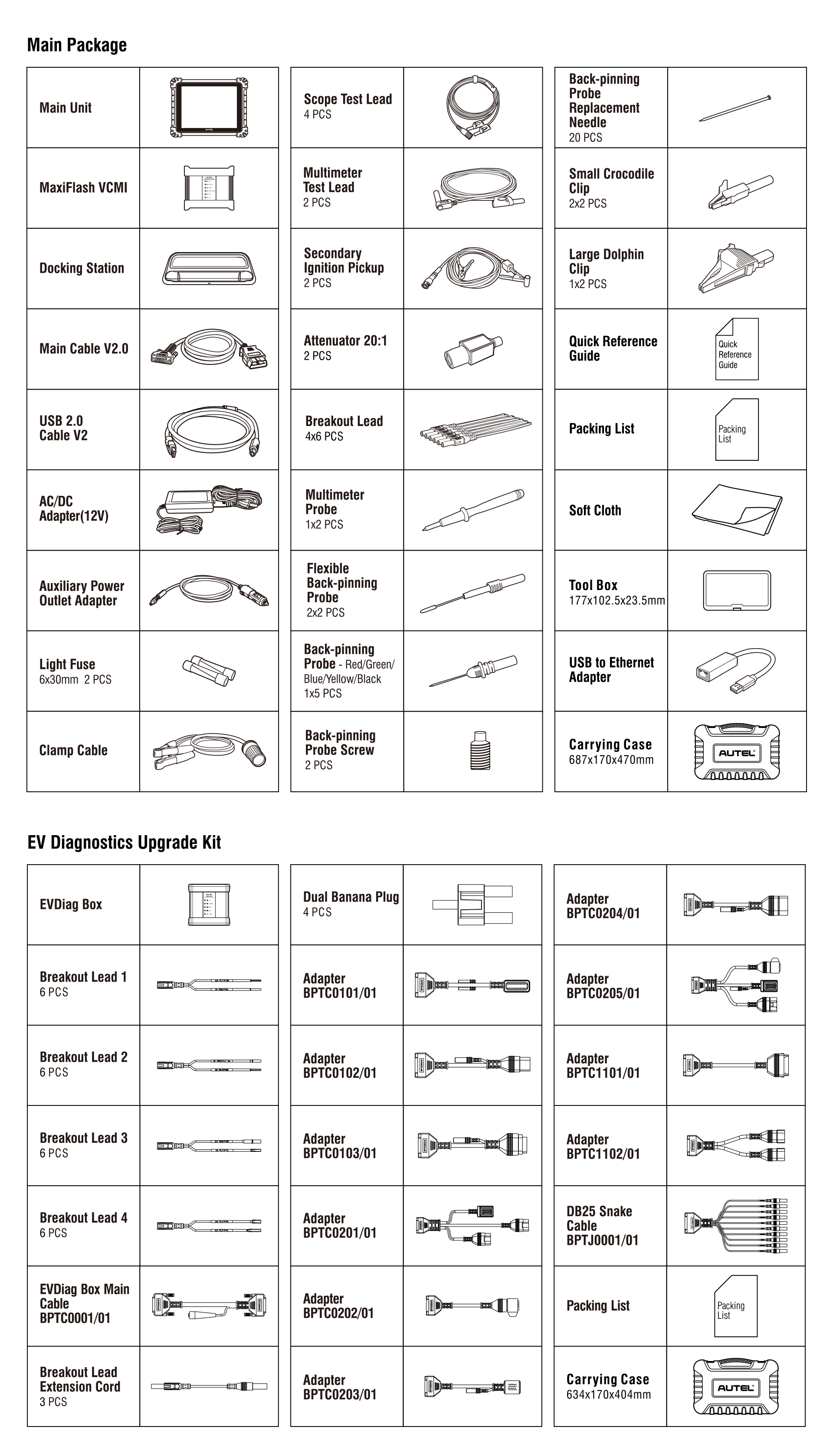

Accessories

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.7 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight	2.18kg (4.81 lb.)
Protocols	CANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.7 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight	2.18kg (4.81 lb.)
Protocols	CANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
