MaxiPRO MP900E KIT

All Systems Diagnostics and Service Tablet

The MaxiPRO MP900E KIT is an all-system diagnostics tablet, compatible with U.S., Asian, and European vehicles, 1996 and newer. The eight-inch touchscreen Android-based tablet features a quad-core processor for maximum speed and efficiency.

  • image 0
  • image 0

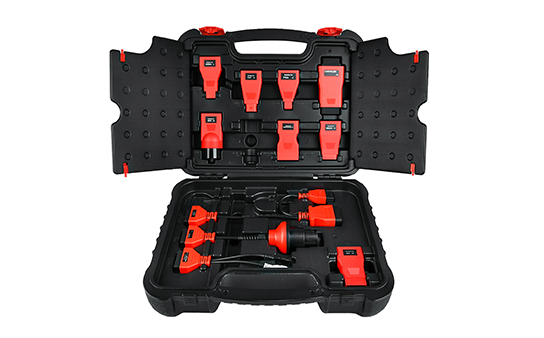

· Includes OE-compliant non-OBD II adapter kit for specific vehicles

· Extensive vehicle coverage for U.S., Asian, and European vehicle, 1996 and newer

· Exceptional OE-Level system coverage for all electronic systems

· Complete code, live data, ECU information, active test, and special function capabilities

· Expansive 40-plus menu of service and maintenance tasks

· Generates Pre & Post Scan· Reports

· Supports the latest communication protocols, including DoIP and CAN FD

· Smart AutoVIN technology for identifying vehicles easily

· Automatic system and software updates with real-time push message notifications via Wi-Fi

· Remote Access Technical Support Troubleshooting·

· Shop management application  to maintain  data files,customer info, and vehicle records

· Convenient data management system for managing internal applications and reviewing data


Operating   SystemAndroid   11
ProcessorQuad core Processor(1.8GHz)
Memory4GB RAM & 64GB ROM
Display8-inch LCD capacitive touchscreen with 1280x800 resolution
Rear Camera8 MP
ConnectivityUSB Type-C
USB 2.0
Wi-Fi
Mini SD card (supports up to 64GB)
Audio Input/OutputInput: N/A
Output: buzzer
Power and Battery3.7 V/7700mAh lithium-polymer battery
Charges via 5 VDC power supply
Battery Charging Input5 V/3 A
Operating Temp0 to 50°C (32 to 122°F)
Storage Temp-10 to 60°C (14 to 140°F)
ProtocolsISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD



MaxiPRO MP900E KITMaxiPRO MP900/MP900EMaxiPRO MP900-BT/MP900Z-BTMaxiPRO MP900-TS
Read Codes√√√√
Erase Codes√√√√
Live Data√√√√
ECU Information√√√√
Active Test√√√√
Service Functions√ (40+kinds)√ (40+kinds)√ (40+kinds)√ (40+kinds)
Complete OBD Diagnostics√√√√
Pre & Post Scan√√√√
Scan VIN√√√√
ECU Coding√√√√
Guided Function√√√√
Tire Pressure Monitoring   SystemBasicBasicBasicComplete
Immobilizer FunctionBasicBasicBasicBasic
Advanced TPMS Diagnostics for   Complete TPMS Health Check------√
Activate All Known TPMS   Sensors------√
Program AUTEL MX-Sensors------√
Comprehensive OBD relearn   coverage------√
On-screen Relearn Procedure------√
DoIP√√√√
CANFD√√√√
Battery Analysis----√√
Videoscope√√√√
Non-OBD II adapters√（Included)------
ProcessorQuad-core 1.8GHzQuad-core 1.8GHzQuad-core 1.8GHzQuad-core 1.8GHz
Operating SystemAndroid 11Android 11Android 11Android 11
Memory4G + 64G4G + 64G4G + 64G4G + 64G
Display8" LCD8" LCD8" LCD8" LCD
Battery7700mAh7700mAh7700mAh7700mAh
Internet UpdatableWi-FiWi-FiWi-FiWi-Fi
Multilingual Support√√√√
Historical Test Records√√√√
Save and Playback Data√√√√
Wi-Fi Print √√√√
Vehicle communication methodWiredWiredWireless (bluetooth)Wireless (bluetooth)


  • Description

    • · Includes OE-compliant non-OBD II adapter kit for specific vehicles

    · Extensive vehicle coverage for U.S., Asian, and European vehicle, 1996 and newer

    · Exceptional OE-Level system coverage for all electronic systems

    · Complete code, live data, ECU information, active test, and special function capabilities

    · Expansive 40-plus menu of service and maintenance tasks

    · Generates Pre & Post Scan· Reports

    · Supports the latest communication protocols, including DoIP and CAN FD

    · Smart AutoVIN technology for identifying vehicles easily

    · Automatic system and software updates with real-time push message notifications via Wi-Fi

    · Remote Access Technical Support Troubleshooting·

    · Shop management application  to maintain  data files,customer info, and vehicle records

    · Convenient data management system for managing internal applications and reviewing data


  • Specifications
    • Operating   SystemAndroid   11
    ProcessorQuad core Processor(1.8GHz)
    Memory4GB RAM & 64GB ROM
    Display8-inch LCD capacitive touchscreen with 1280x800 resolution
    Rear Camera8 MP
    ConnectivityUSB Type-C
    USB 2.0
    Wi-Fi
    Mini SD card (supports up to 64GB)
    Audio Input/OutputInput: N/A
    Output: buzzer
    Power and Battery3.7 V/7700mAh lithium-polymer battery
    Charges via 5 VDC power supply
    Battery Charging Input5 V/3 A
    Operating Temp0 to 50°C (32 to 122°F)
    Storage Temp-10 to 60°C (14 to 140°F)
    ProtocolsISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISO11898(High-speed, Middle-speed, Low-speed    and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART   Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD


  • Video
  • Comparison

    		• MaxiPRO MP900E KITMaxiPRO MP900/MP900EMaxiPRO MP900-BT/MP900Z-BTMaxiPRO MP900-TS
    Read Codes√√√√
    Erase Codes√√√√
    Live Data√√√√
    ECU Information√√√√
    Active Test√√√√
    Service Functions√ (40+kinds)√ (40+kinds)√ (40+kinds)√ (40+kinds)
    Complete OBD Diagnostics√√√√
    Pre & Post Scan√√√√
    Scan VIN√√√√
    ECU Coding√√√√
    Guided Function√√√√
    Tire Pressure Monitoring   SystemBasicBasicBasicComplete
    Immobilizer FunctionBasicBasicBasicBasic
    Advanced TPMS Diagnostics for   Complete TPMS Health Check------√
    Activate All Known TPMS   Sensors------√
    Program AUTEL MX-Sensors------√
    Comprehensive OBD relearn   coverage------√
    On-screen Relearn Procedure------√
    DoIP√√√√
    CANFD√√√√
    Battery Analysis----√√
    Videoscope√√√√
    Non-OBD II adapters√（Included)------
    ProcessorQuad-core 1.8GHzQuad-core 1.8GHzQuad-core 1.8GHzQuad-core 1.8GHz
    Operating SystemAndroid 11Android 11Android 11Android 11
    Memory4G + 64G4G + 64G4G + 64G4G + 64G
    Display8" LCD8" LCD8" LCD8" LCD
    Battery7700mAh7700mAh7700mAh7700mAh
    Internet UpdatableWi-FiWi-FiWi-FiWi-Fi
    Multilingual Support√√√√
    Historical Test Records√√√√
    Save and Playback Data√√√√
    Wi-Fi Print √√√√
    Vehicle communication methodWiredWiredWireless (bluetooth)Wireless (bluetooth)
