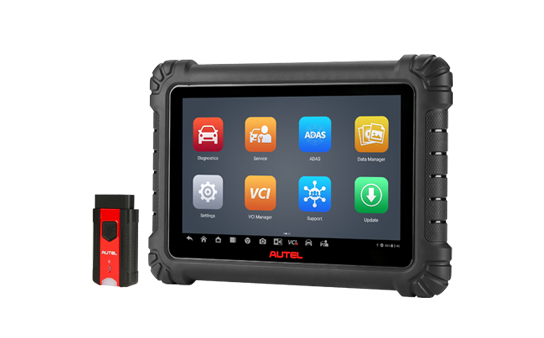

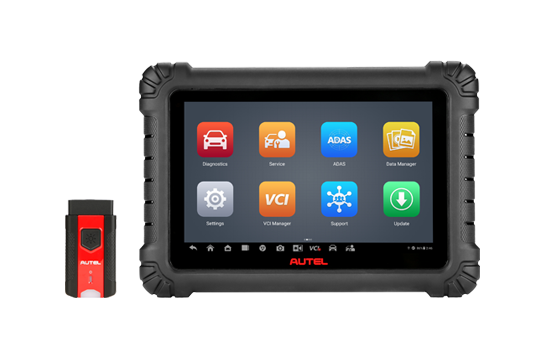

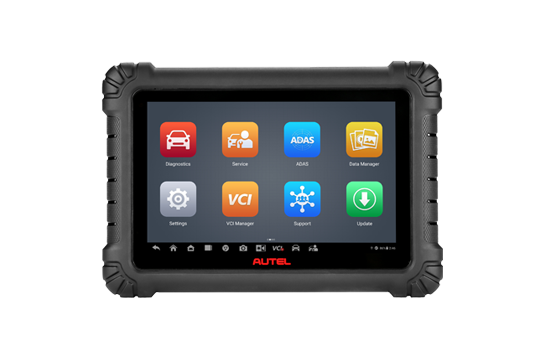

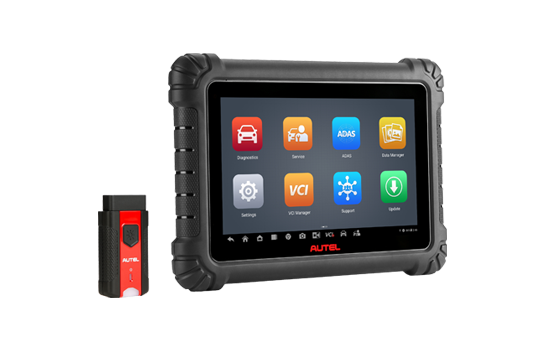

MaxiSys 906MAX

Professional Diagnostic Tablet with Bluetooth VCI

The MaxiSYS 906MAX is a 10.1-inch Android-based wireless diagnostics and service tablet with professional capabilities. Featuring industry-leading coverage of U.S., Asian, and European vehicles, 1996 and newer. Perform Pre- and Post-Scans, all-systems diagnostics including reading and erasing codes, viewing and graphing Live Data, and performing bi-directional tests and services including Active Tests and Special Functions. Advanced functionality includes coding and adaptations. Features extensive, vehicle-specific, direct-to-system service and maintenance tasks. Quickly execute 40 service tasks including oil light reset, DPF regen, steering angle sensor reset, airbag reset, occupancy seat reset and brake bleed. Includes Bluetooth-enabled MaxiVCI V200 supporting standard and advanced vehicle communication protocols. Easily share customizable reports via email and text. Supports direct battery, starter and charging system testing, and videoscope capability with additional purchases.

  • image 1
  • image 1
  • image 1
  • image 1
  • image 1
  • image 1

·Advanced diagnostic tablet compatible with U.S., Asian and European vehicle, 1996 and newer

·10.1-inch Wireless Touchscreen tablet with Bluetooth-enabled MaxiVCI V200

·Octa-Core Processor/128 GB memory / 4 GB RAM

·Performs all system scan with ADAS identification/ Customizable Pre & Post scans, Read/Erase Codes, View Freeze Frame  and Live Data

·Bi-directional control capability including Active test/Performs coding and adaptations

·AUTO SCAN 2.0 maximize diagnostics capabilities with faster all system scan

·Extensive Service Menu: Quick access to 40+ of the most common maintenance tasks

·Features Wi-Fi print functionality, and supports Videoscope, and Battery testing

·Supports the latest communication protocols, including DoIP and CAN FD

·One-touch report sharing via QR codes, text messages, or emails

·ADAS Calibration-capable with software upgrade and Autel Calibration System purchase


ModelMS906 MAX
Operating SystemAndroid 10
ProcessorOcta-core Processor
Memory4 GB RAM & 128 GB On-board Memory
Battery11600 mAh 3.85 V Lithium-polymer Battery
Display10.1-inch LCD Capacitive Touchscreen with 1920 x 1200
Resolution
Camera (Rear)13 MP
ConnectivityWi-Fi (802.11 a/b/g/n/ac)
BT 5.0 (BR/EDR + BLE)
GPS
USB 2.0 (Two USB Host Type A, one Mini USB)
SD Card (Support up to 256 GB)
Audio Input / OutputMicrophone
Dual Speakers
3-band or 4-band 3.5 mm Headset Jack
Operating Temp.0 °C to 50 °C (32 °F to 122 °F)
Storage Temp.-10 °C to 60 °C (14 °F to 140 °F)
ProtocolsISO13400, CAN FD, PLC J2497, ISO-15765, SAE-J1939, ISO-
14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-
11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,
ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAEJ2809
(Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567
(CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW
DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708,
SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)


  • Description
  • ·Advanced diagnostic tablet compatible with U.S., Asian and European vehicle, 1996 and newer

    ·10.1-inch Wireless Touchscreen tablet with Bluetooth-enabled MaxiVCI V200

    ·Octa-Core Processor/128 GB memory / 4 GB RAM

    ·Performs all system scan with ADAS identification/ Customizable Pre & Post scans, Read/Erase Codes, View Freeze Frame  and Live Data

    ·Bi-directional control capability including Active test/Performs coding and adaptations

    ·AUTO SCAN 2.0 maximize diagnostics capabilities with faster all system scan

    ·Extensive Service Menu: Quick access to 40+ of the most common maintenance tasks

    ·Features Wi-Fi print functionality, and supports Videoscope, and Battery testing

    ·Supports the latest communication protocols, including DoIP and CAN FD

    ·One-touch report sharing via QR codes, text messages, or emails

    ·ADAS Calibration-capable with software upgrade and Autel Calibration System purchase


  • Specifications
  • ModelMS906 MAX
    Operating SystemAndroid 10
    ProcessorOcta-core Processor
    Memory4 GB RAM & 128 GB On-board Memory
    Battery11600 mAh 3.85 V Lithium-polymer Battery
    Display10.1-inch LCD Capacitive Touchscreen with 1920 x 1200
    Resolution
    Camera (Rear)13 MP
    ConnectivityWi-Fi (802.11 a/b/g/n/ac)
    BT 5.0 (BR/EDR + BLE)
    GPS
    USB 2.0 (Two USB Host Type A, one Mini USB)
    SD Card (Support up to 256 GB)
    Audio Input / OutputMicrophone
    Dual Speakers
    3-band or 4-band 3.5 mm Headset Jack
    Operating Temp.0 °C to 50 °C (32 °F to 122 °F)
    Storage Temp.-10 °C to 60 °C (14 °F to 140 °F)
    ProtocolsISO13400, CAN FD, PLC J2497, ISO-15765, SAE-J1939, ISO-
    14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-
    11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,
    ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAEJ2809
    (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567
    (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW
    DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708,
    SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
