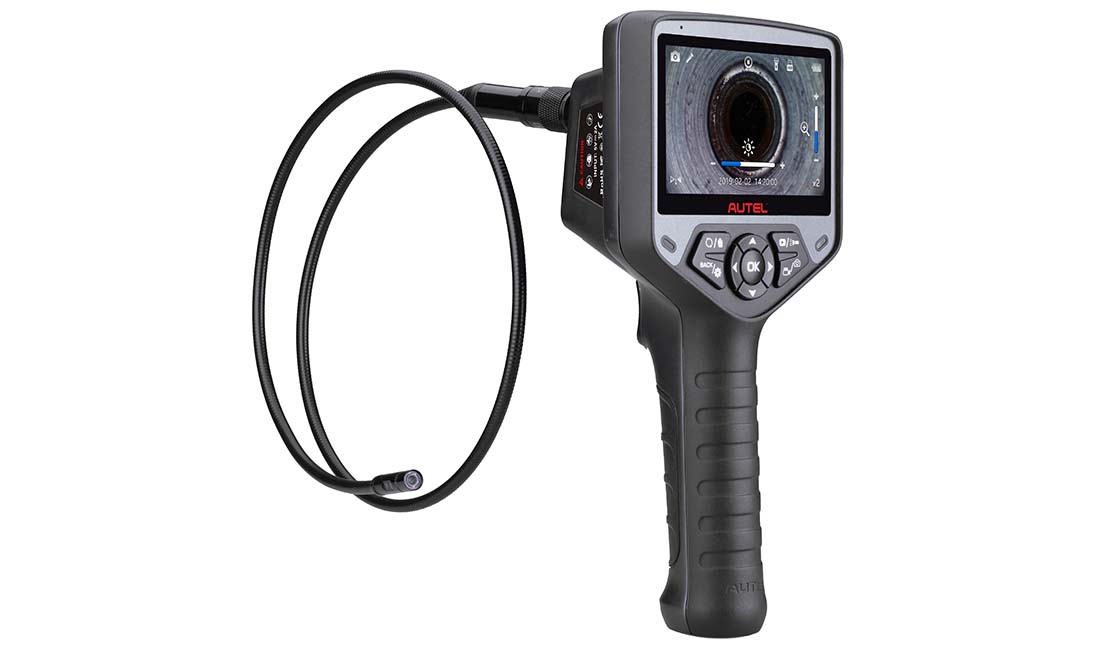

MaxiVideo MV480

The MaxiVideo MV480, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features dual front and side cameras with 1920×1080 high resolution, a 4.1" 1200×720 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.


  • image 0
  • image 0
  • image 0

High resolution images and videos (1920 x 1080)

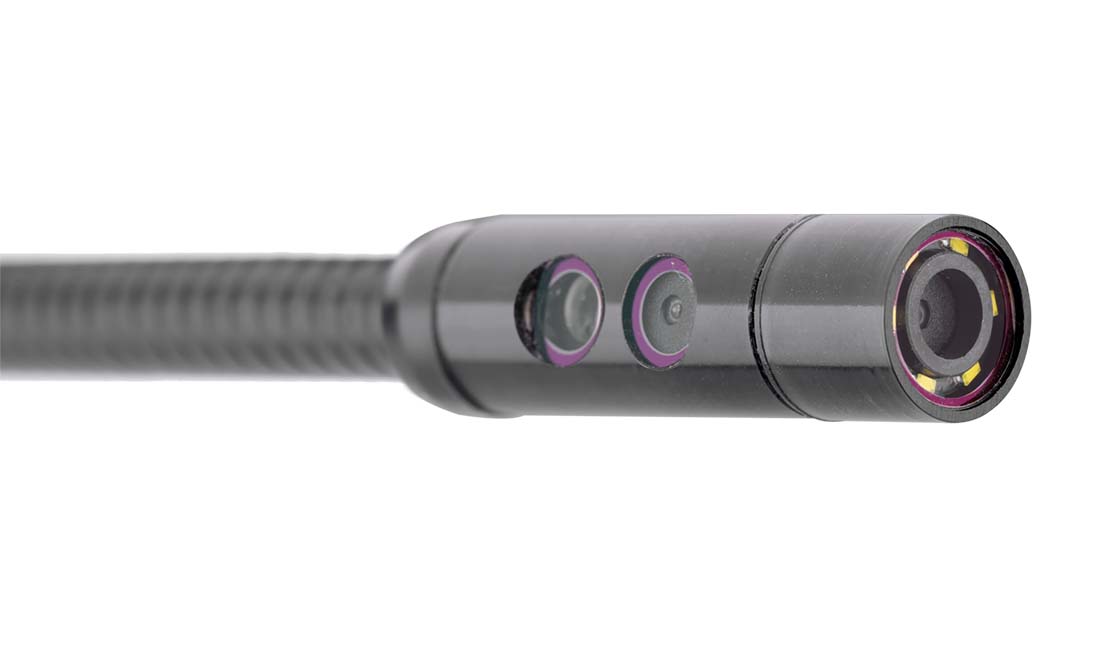

Dual front and side cameras for wider viewing angle


4.1-inch full color LCD display (1200 x 720)


1-button quick image capture and video recording


70-degree field of view for expanded viewing angle


• Adds audio annotation for detailed review


Micro HDMI-output enables streaming to larger monitors


Freeze-frame camera stills or video recording


• On-screen horizontal/vertical reverse


Records and plays back images and video clips


7X digital zoom for increased viewing


8GB Micro SD card (included), supports up to 128GB


Mini-USB cable (included) for uploading images and videos


More than 10,000 lux, adjustable 10-level LED illumination


Flashlight for higher visibility in low-light environment


Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use


1m (39.4") semi-rigid, flexible watertight cable


Includes magnet and hook cable accessories


8.5mm (0.33’’) probe fits most spark plug holes


Compatible with 5.5mm (0.22’’) camera head (not included)

Recommended useIndoor
Optimal viewing Distance0.79" to 2" (2 cm to 5 cm)
Image captureJPG images (1920 x 1080 pixels)
MP4 videos (1920 x 1080 pixels)
Screen type display4.1" TFT LCD
Display resolution1200 x 720 pixels
Power supplyBuilt-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
Tested battery lifeApproximately 4 hours of continuous use
Dimensions243 x 116 x 122mm (9.6" x 4.6" x 4.8")
Weight

0.422 kg (0.93lbs)

Recording mediumMicro SD card (8GB Standard/128GB Max)
Image controlsZoom, low light vision
LightingFully adjustable LED, Flashlight
Cable reach1m (39.4")
Imager heads8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
WaterproofTo a depth of 1m (39.4") (Imager heads and cable only)
Additional portsTF, Mini USB, Micro HDMI
Operating tempMain unit: 14°F to 122°F (-10°C to 50°C)
Cable: 14°F to 140°F (-10°C to 60°C)
Storage temp-4°F to 158°F (-20°C to 70°C)
Operating humidity5% - 95% non-condensing
  • Autel MaxiVideo MV480 - Introduction



 MaxiVideo
MV400
MaxiVideo
MV500
MaxiVideo
MV480
MaxiVideo
MV460
MaxiVideo
MV160

 MaxiVideo
MV400
MaxiVideo
MV500
MaxiVideo
MV480
MaxiVideo
MV460
MaxiVideo
MV160
High resolution and full color digital LCD display3.5" (320×240)5” (1280×720)4.1" (1200×720)3.5'' (640 x 480)Smartphone-based
Record and play back high resolution still images and videos640×4801280×7201920 x 10801920 x 10801920 x 1080
Wireless monitor enables remote viewing--------
Touchscreen for convenient operation--------
Single button for quick photo and video recording----
Add audio annotation for detail presentation----
On-screen photo editing and markup------
Dual cameras see straight ahead or at a 90° angle------
Digital zoom for detailed viewing
View objects as close as 1"
BOn-screen horizontal/vertical reverse
On-screen 90° clockwise rotation--
Built-in & adjustable LED illuminates viewing area
HDMI port for monitor view----
Mini USB connector for uploading images and videos--
1 m long semi-rigid flexible watertight shaft
Narrow probe diameter available in both 5.5 mm and 8.5 mm8.5 mm8.5mm (5.5mm Optional)8.5mm (5.5mm Optional)8.5mm (5.5mm Optional)
Micro SD card slot for greater memory capacity--
Oil and scratch resistant tempered glass lens
Ergonomic and durable tool housing
Built-in rechargeable Li-ion battery
Multilingual support
Water Resistant Camera head
